ref:24 | "rattrap' chaine" chainwheel attachment bolt set (2) |
|
ref:25 | chainwheel to crankarm attachment bolt set (5) - bushed nut, washer, screw |
|
ref:62 | chainwheel coupling bolt set (6) - bushed nut, washer, screw; double, for attaching ref:104/106 "criterium" pattern chainwheels to ref:173/175 "adapteur" |
|
ref:64 | chainwheel coupling bolt set (6) - bushed nut, washer, spacer, screw; double |
|
ref:p75 | chainwheel coupling bolt set (6) - bushed nut, washer, screw; single, for attaching ref:p209 "criterium" pattern track chainrings to ref:p175 "professionnel" "adapteur" |
|
ref:86 | chainwheel coupling bolt set (6) - bushed nut, washer, 2 spacers, screw; triple |
|
ref:175 | "professionnel" "adapteur" for ref:204/206"criterium" pattern chainwheels; double or triple |
|
ref:p175 | "professionnel" "adapteur" for ref:204/206/p209"criterium" pattern chainwheels; single |
|
ref:201 | tandem crossover chainwheel 1/2 x 3/32" |
|
ref:ch205 | "criterium" outer chainwheel |
|
ref:cy205 | "cyclotouriste" outer chainwheel |
|
ref:p205 | track chainwheel 1/8" (stamped "3" below tooth # stamp) or 3/32" |
| ref:r205 | tandem crossover chainwheel 1/2" x 1/8" | |
|
ref:255 | track chainwheel 1" x 3/16" |
|
ref:1205 | cyclocross chainwheel w/guards; 50mm bcd |
|
ref:p1755 | single chainwheel; ref:p175 "professionnel" "adapteur" w/ ref:p209"criterium" pattern chainwheel; 3/32" or 1/8" |
|
ref:2175 | double chainwheel set; ref:175 "professionnel" "adapteur" w/ref:204/206 "criterium" pattern chainwheels |
|
ref:2205 | "course legere" or "criterium" double chainwheel set |
|

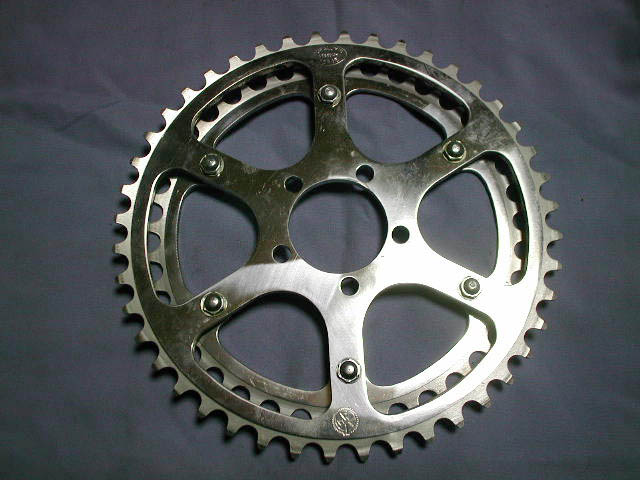

ref:2215 | "randonneur" double chainwheel set |
|
ref:2235 | "cyclotouriste" double chainwheel set |
|
ref:3175 | triple chainwheel set; ref:175 "adapteur" w/ ref:204/206"criterium" pattern chainwheels |
| ref:3205 | "criterium" triple chainwheel set | |
|
ref:3235 | "cyclotouriste" triple chainwheel set |
|
ref:? | "cyclosportive" triple chainwheel set |
| ref:? | "cyclosportive" outer chainwheel | |
| ref:? | outer chainwheel drilled for both 80mm bcd and "randonneur" inner chainwheels | |
|
ref:? | "professionnel" "adapteur" for "randonneur" chainwheels; double or triple |
|
ref:? | double chainwheel set; ref:? "professionnel" "adapteur" w/ref:? "randonneur" pattern chainwheels |
|
ref:? | outer chainwheel drilled for both 80mm bcd and "criterium" inner chainwheels |
|
ref:? | reinforced "criterium" outer chainwheel |
NOTES:
