"professionnel" chainwheels, "adapteur" plates, and mounting hardware for "pro 3 attaches" crankarms

ref:p23 track chainwheel attachment bolt set (3) - bushed nut, washer, screw
ref:43 chainwheel coupling bolt set (3) - bushed nut, washer, screw; double
ref:83 chainwheel coupling bolt set (3) - bushed nut, washer, spacer, screw; triple
ref:173 "professionnel" "adapteur" for ref:204/206"criterium" pattern 152mm bcd chainwheels; double or triple

ref:p173? "professionnel" "adapteur" for ref:204/206/p209 "criterium" pattern chainwheels; single
ref:203 outer chainwheel; drilled for "criterium" inner chainwheel
ref:p203 track chainwheel 1/8" (stamped "3" below tooth # stamp) or 3/32"
ref:ra203 outer chainwheel; drilled for "randonneur" inner chainwheel
ref:233 track chainwheel 1" x 3/16"
ref:243 outer chainwheel; bolt holes countersunk on side w/ T.A. logo stamp
ref:263 inner chainwheel; bolt holes countersunk on side w/tooth # stamp
ref:2173 double chainwheel set; ref:173 "professionnel" "adapteur" w/ref:204/206 "criterium" pattern chainwheels

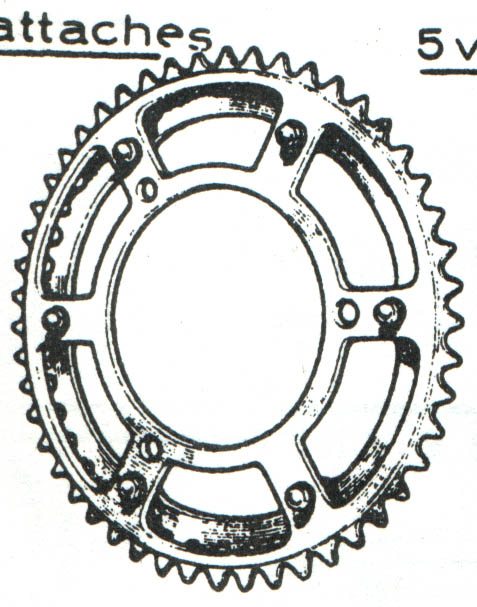

ref:2203 double "criterium" chainwheel set
ref:2213 "professional" double chainwheel set, with "randonneur" inner chainwheels

ref:3173 triple chainwheel set; ref:173 "professionnel" "adapteur" w/ ref:204/206 "criterium" pattern chainwheels

ref:3203 triple "criterium" chainwheel set

NOTES:
